王瑞娟，等：拱桥状NiO/碳纸电极的制备及对葡萄糖的电传感性能

application as non-enzymatic glucose sensor[J]. Journal sensing[J]. Nanotechnology，2021，32（43）：435501.
of Electroanalytical Chemistry，2019，832：189-195. [16] VU T O，CHU T X，NGUYEN D H. A highly sensitive
[15] WANG C H，HAN B，LI J，et al. Direct epitaxial non-enzymatic glucose electrochemical sensor based
growth of nickel phosphide nanosheets on nickel foam as on NiO nanohives[J]. Advances in Natural Sciences：
self-support electrode for efficient non-enzymatic glucose Nanoscience and Nanotechnology，2021，12（4）：045012.

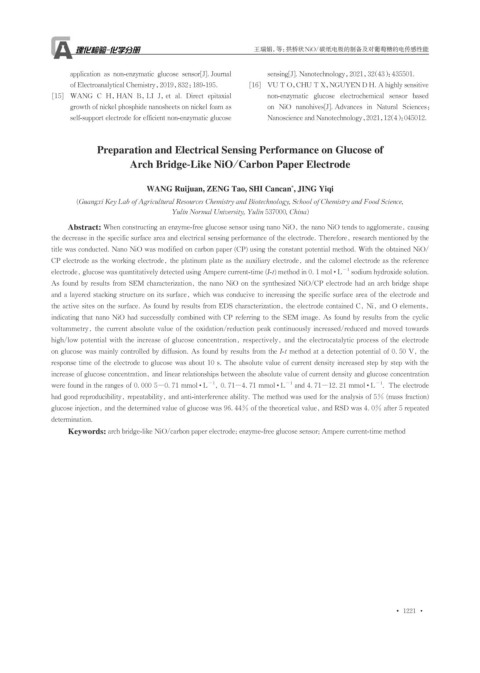

Preparation and Electrical Sensing Performance on Glucose of

Arch Bridge-Like NiO/Carbon Paper Electrode

WANG Ruijuan, ZENG Tao, SHI Cancan , JING Yiqi
*
(Guangxi Key Lab of Agricultural Resources Chemistry and Biotechnology, School of Chemistry and Food Science,
Yulin Normal University, Yulin 537000, China)

Abstract: When constructing an enzyme-free glucose sensor using nano NiO, the nano NiO tends to agglomerate, causing
the decrease in the specific surface area and electrical sensing performance of the electrode. Therefore, research mentioned by the
title was conducted. Nano NiO was modified on carbon paper (CP) using the constant potential method. With the obtained NiO/
CP electrode as the working electrode, the platinum plate as the auxiliary electrode, and the calomel electrode as the reference
electrode, glucose was quantitatively detected using Ampere current-time (I-t) method in 0. 1 mol · L −1 sodium hydroxide solution.
As found by results from SEM characterization, the nano NiO on the synthesized NiO/CP electrode had an arch bridge shape
and a layered stacking structure on its surface, which was conducive to increasing the specific surface area of the electrode and
the active sites on the surface. As found by results from EDS characterization, the electrode contained C, Ni, and O elements,
indicating that nano NiO had successfully combined with CP referring to the SEM image. As found by results from the cyclic
voltammetry, the current absolute value of the oxidation/reduction peak continuously increased/reduced and moved towards
high/low potential with the increase of glucose concentration, respectively, and the electrocatalytic process of the electrode
on glucose was mainly controlled by diffusion. As found by results from the I-t method at a detection potential of 0. 50 V, the
response time of the electrode to glucose was about 10 s. The absolute value of current density increased step by step with the
increase of glucose concentration, and linear relationships between the absolute value of current density and glucose concentration
were found in the ranges of 0. 000 5-0. 71 mmol · L −1 , 0. 71-4. 71 mmol · L −1 and 4. 71-12. 21 mmol · L −1 . The electrode
had good reproducibility, repeatability, and anti-interference ability. The method was used for the analysis of 5% (mass fraction)
glucose injection, and the determined value of glucose was 96. 44% of the theoretical value, and RSD was 4. 0% after 5 repeated
determination.
Keywords: arch bridge-like NiO/carbon paper electrode; enzyme-free glucose sensor; Ampere current-time method

• 1221 •
