Page 85 - 理化检验-化学分册2025年第三期

关文碧，等：聚酰胺固相萃取结合高效液相色谱-串联质谱法测定广东省水源水中8种双酚类化合物的含量

1496-1503. chromatography-tandem mass spectrometry with solid
SONG Z D，QIU Y L，ZHANG H，et al. The phase extraction [J]. Journal of Food Safety & Quality，
occurrence and research progress of bisphenol analogues 2018，9（9）：2158-2163.
in aquatic environment [J]. Environmental Chemistry， [18] 周小新，胡小键. 超高效液相色谱串联质谱法测定饮
2020，39（6）：1496-1503. 用水中双酚S、双酚F和双酚A [J]. 环境卫生学杂志，
[17] 张媛媛，李延升，韩晓鸥，等. 固相萃取-超高效液相色 2020，10（2）：196-200.
谱-串联质谱法测定瓶装饮用水中双酚A、双酚S[J]. ZHOU X X，HU X J. Direct determination of bisphenol S，
食品安全质量检测学报，2018，9（9）：2158-2163. bisphenol F，and bisphenol A in drinking water by
ZHANG Y Y，LI Y S，HAN X O，et al. Determination ultra-performance liquid chromatography-mass
of bisphenol A and bisphenol S residues in spectrometry [J]. Journal of Environmental Hygiene，
bottled drinking water by ultra performance liquid 2020，10（2）：196-200.

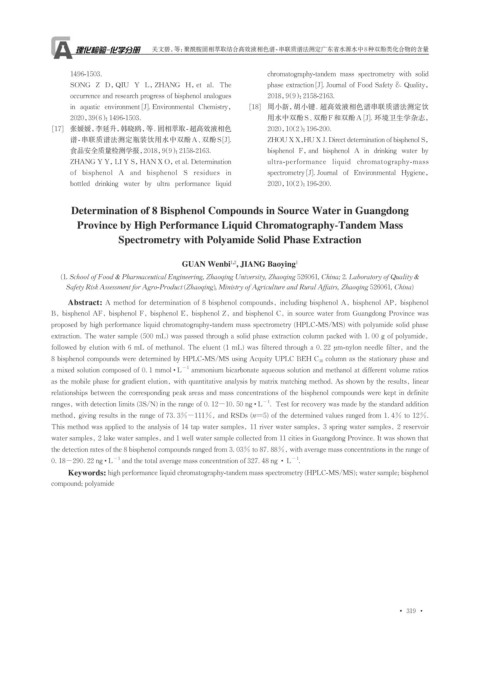

Determination of 8 Bisphenol Compounds in Source Water in Guangdong
Province by High Performance Liquid Chromatography-Tandem Mass

Spectrometry with Polyamide Solid Phase Extraction

GUAN Wenbi , JIANG Baoying 1
1,2
(1. School of Food & Pharmaceutical Engineering, Zhaoqing University, Zhaoqing 526061, China; 2. Laboratory of Quality &
Safety Risk Assessment for Agro-Product (Zhaoqing), Ministry of Agriculture and Rural Affairs, Zhaoqing 526061, China)

Abstract: A method for determination of 8 bisphenol compounds, including bisphenol A, bisphenol AP, bisphenol
B, bisphenol AF, bisphenol F, bisphenol E, bisphenol Z, and bisphenol C, in source water from Guangdong Province was
proposed by high performance liquid chromatography-tandem mass spectrometry (HPLC-MS/MS) with polyamide solid phase
extraction. The water sample (500 mL) was passed through a solid phase extraction column packed with 1. 00 g of polyamide,
followed by elution with 6 mL of methanol. The eluent (1 mL) was filtered through a 0. 22 µm-nylon needle filter, and the
8 bisphenol compounds were determined by HPLC-MS/MS using Acquity UPLC BEH C 18 column as the stationary phase and
a mixed solution composed of 0. 1 mmol · L −1 ammonium bicarbonate aqueous solution and methanol at different volume ratios
as the mobile phase for gradient elution, with quantitative analysis by matrix matching method. As shown by the results, linear
relationships between the corresponding peak areas and mass concentrations of the bisphenol compounds were kept in definite
−1
ranges, with detection limits (3S/N) in the range of 0. 12-10. 50 ng · L . Test for recovery was made by the standard addition
method, giving results in the range of 73. 3%-111%, and RSDs (n=5) of the determined values ranged from 1. 4% to 12%.
This method was applied to the analysis of 14 tap water samples, 11 river water samples, 3 spring water samples, 2 reservoir
water samples, 2 lake water samples, and 1 well water sample collected from 11 cities in Guangdong Province. It was shown that
the detection rates of the 8 bisphenol compounds ranged from 3. 03% to 87. 88%, with average mass concentrations in the range of
0. 18-290. 22 ng · L −1 and the total average mass concentration of 327. 48 ng · L −1 .
Keywords: high performance liquid chromatography-tandem mass spectrometry (HPLC-MS/MS); water sample; bisphenol
compound; polyamide

• 319 •
