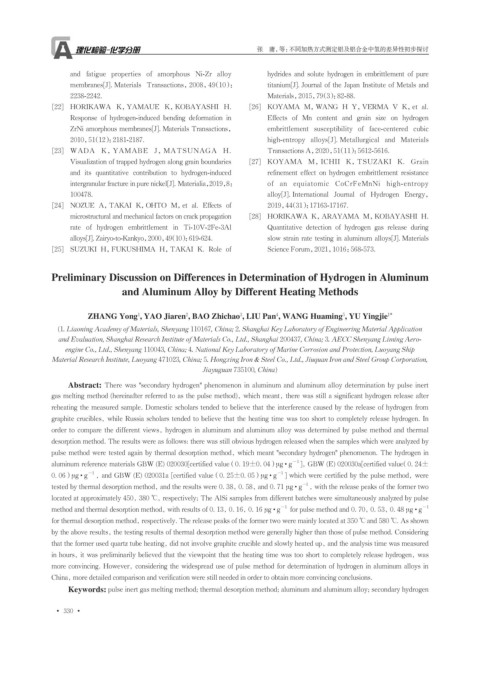

Page 96 - 理化检验-化学分册2025年第三期
P. 96

张 庸,等:不同加热方式测定铝及铝合金中氢的差异性初步探讨


                   and  fatigue  properties  of  amorphous  Ni-Zr  alloy   hydrides  and  solute  hydrogen  in  embrittlement  of  pure
                   membranes[J]. Materials  Transactions,2008,49(10):  titanium[J]. Journal of the Japan Institute of Metals and
                   2238-2242.                                        Materials,2015,79(3):82-88.
               [22]  HORIKAWA  K,YAMAUE  K,KOBAYASHI  H.         [26]  KOYAMA  M,WANG  H  Y,VERMA  V  K,et  al.
                   Response  of  hydrogen-induced  bending  deformation  in   Effects  of  Mn  content  and  grain  size  on  hydrogen
                   ZrNi amorphous membranes[J]. Materials Transactions,  embrittlement  susceptibility  of  face-centered  cubic
                   2010,51(12):2181-2187.                            high-entropy  alloys[J]. Metallurgical  and  Materials
               [23]  WADA  K,YAMABE  J,MATSUNAGA  H.                 Transactions A,2020,51(11):5612-5616.
                   Visualization of trapped hydrogen along grain boundaries    [27]  KOYAMA  M,ICHII  K,TSUZAKI  K.  Grain
                   and  its  quantitative  contribution  to  hydrogen-induced   refinement  effect  on  hydrogen  embrittlement  resistance
                   intergranular fracture in pure nickel[J]. Materialia,019,8:  of  an  equiatomic  CoCrFeMnNi  high-entropy
                                                      2
                   100478.                                           alloy[J]. International  Journal  of  Hydrogen  Energy,
               [24]  NOZUE  A,TAKAI  K,OHTO  M,et  al.  Effects  of   2019,44(31):17163-17167.
                   microstructural and mechanical factors on crack propagation    [28]  HORIKAWA  K,ARAYAMA  M,KOBAYASHI  H.
                   rate  of  hydrogen  embrittlement  in  Ti-10V-2Fe-3Al   Quantitative  detection  of  hydrogen  gas  release  during
                   alloys[J]. Zairyo-to-Kankyo,2000,49(10):619-624.  slow strain rate testing in aluminum alloys[J]. Materials
               [25]  SUZUKI  H,FUKUSHIMA  H,TAKAI  K.  Role  of      Science Forum,2021,1016:568-573.


              Preliminary Discussion on Differences in Determination of Hydrogen in Aluminum
                                and Aluminum Alloy by Different Heating Methods


                       ZHANG Yong , YAO Jiaren , BAO Zhichao , LIU Pan , WANG Huaming , YU Yingjie  1*
                                                                                        5
                                                              3
                                                                       4
                                    1
                                                2
                (1. Liaoning Academy of Materials, Shenyang 110167, China; 2. Shanghai Key Laboratory of Engineering Material Application
                and Evaluation, Shanghai Research Institute of Materials Co., Ltd., Shanghai 200437, China; 3. AECC Shenyang Liming Aero-
                  engine Co., Ltd., Shenyang 110043, China; 4. National Key Laboratory of Marine Corrosion and Protection, Luoyang Ship
              Material Research Institute, Luoyang 471023, China; 5. Hongxing Iron & Steel Co., Ltd., Jiuquan Iron and Steel Group Corporation,
                                                     Jiayuguan 735100, China)
                  Abstract: There was "secondary hydrogen" phenomenon in aluminum and aluminum alloy determination by pulse inert
              gas melting method (hereinafter referred to as the pulse method), which meant, there was still a significant hydrogen release after
              reheating the measured sample. Domestic scholars tended to believe that the interference caused by the release of hydrogen from
              graphite crucibles, while Russia scholars tended to believe that the heating time was too short to completely release hydrogen. In
              order to compare the different views, hydrogen in aluminum and aluminum alloy was determined by pulse method and thermal
              desorption method. The results were as follows: there was still obvious hydrogen released when the samples which were analyzed by
              pulse method were tested again by thermal desorption method, which meant "secondary hydrogen" phenomenon. The hydrogen in
              aluminum reference materials GBW (E) 020030[certified value (0. 19±0. 04) μg·g −1  ], GBW (E) 020030a[certified value(0. 24±
                       −1                                               −1
              0. 06)μg·g  , and GBW (E) 020031a [certified value (0. 25±0. 05)μg·g  ] which were certified by the pulse method, were


              tested by thermal desorption method, and the results were 0. 38, 0. 58, and 0. 71 μg · g  −1  , with the release peaks of the former two
              located at approximately 450, 380 ℃, respectively; The AlSi samples from different batches were simultaneously analyzed by pulse
                                                                                                             −1
              method and thermal desorption method, with results of 0. 13, 0. 16, 0. 16 μg · g −1   for pulse method and 0. 70, 0. 53, 0. 48 μg · g
              for thermal desorption method, respectively. The release peaks of the former two were mainly located at 350 ℃ and 580 ℃. As shown
              by the above results, the testing results of thermal desorption method were generally higher than those of pulse method. Considering
              that the former used quartz tube heating, did not involve graphite crucible and slowly heated up, and the analysis time was measured
              in hours, it was preliminarily believed that the viewpoint that the heating time was too short to completely release hydrogen, was
              more convincing. However, considering the widespread use of pulse method for determination of hydrogen in aluminum alloys in
              China, more detailed comparison and verification were still needed in order to obtain more convincing conclusions.
                  Keywords: pulse inert gas melting method; thermal desorption method; aluminum and aluminum alloy; secondary hydrogen

               •   330   •
   91   92   93   94   95   96   97   98   99   100   101
